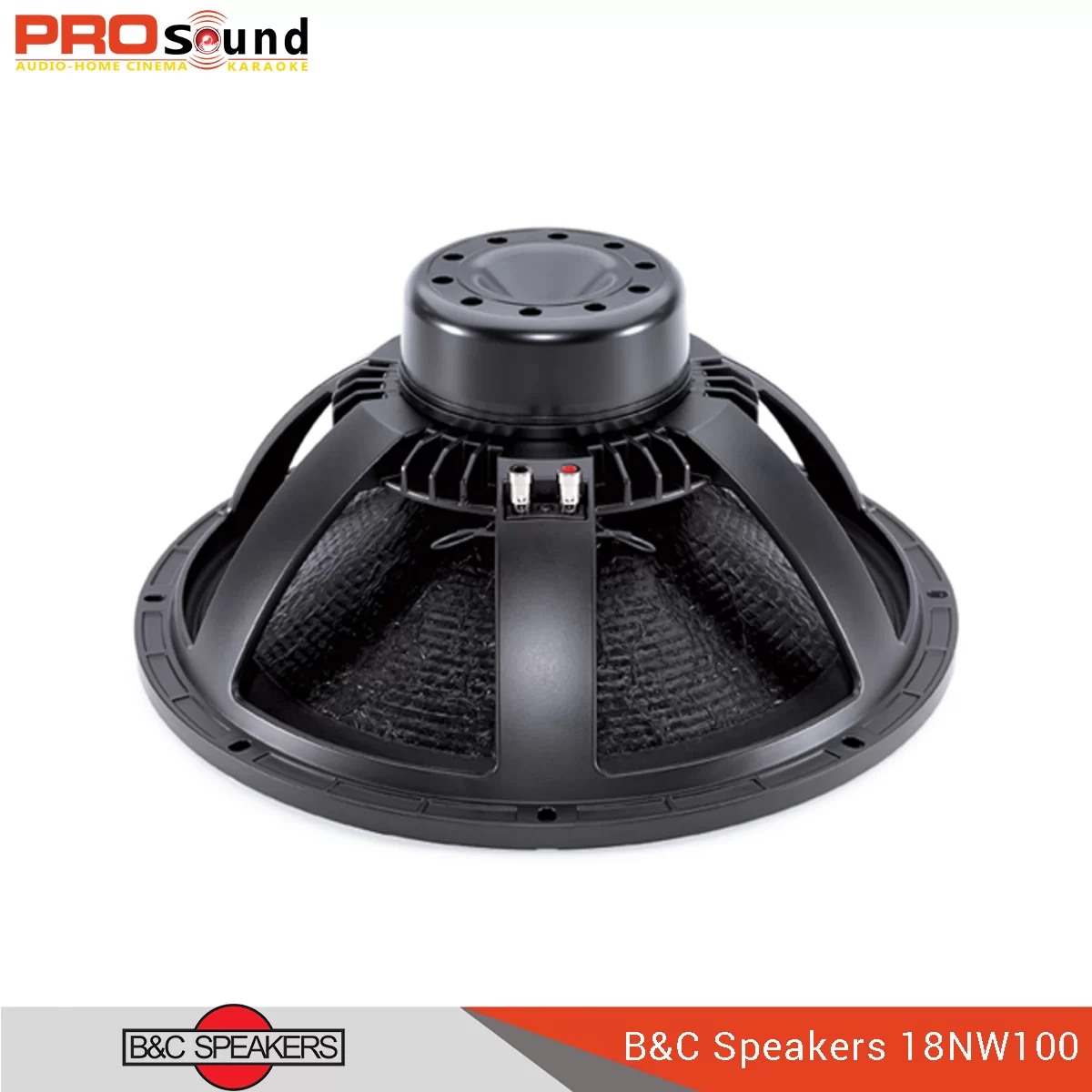

B&C Speaker 18NW100

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features

2400 W continuous program power capacity
100 mm (4 in) copper voice coil
35 - 1000 Hz response
98 dB sensitivity
FEA optimized Neodymium magnet assembly
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression

Specifications
Nominal Diameter: 460 mm (18.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.3 Ω
Nominal Power Handling: 1200 W
Continuous Power Handling: 2400 W
Sensitivity: 98.0 dB
Frequency Range: 35 - 1000 Hz
Voice Coil Diameter: 100 mm (4.0 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 25.0 mm (1.0 in)
Magnetic Gap Depth: 12.0 mm (0.5 in)
Flux Density: 1.2 T

Design
Surround Shape: Triple Roll
Cone Shape: Radial
Magnet Material: Neodymium Inside Slug
Spider: Double Silicone
Pole Design: T-Pole
Woofer Cone Treatment: TWP Waterproof Both Sides
Recommended Enclosure: 160.0 dm3 (5.65 ft 3)
Recommended Tuning: 37 Hz
Parameters
Resonance Frequency: 31 Hz
Re: 5.1 Ω
Qes: 0.27
Qms: 4.2
Qts: 0.26
Vas: 252.0 dm3 (8.9 ft 3)
Sd: 1210.0 cm2 (187.6 in 2)
η₀: 2.7 %
Xmax: 9.0 mm
Xvar: 11.0 mm
Mms: 211.0 g
Bl: 28.0 Txm
Le: 1.7 mH
EBP: 114 Hz

Mounting and Shipping Info
Overall Diameter: 460 mm (18.0 in)
Bolt Circle Diameter: 440 mm (17.3 in)
Baffle Cutout Diameter: 422.0 mm (16.6 in)
Depth: 209 mm (8.2 in)
Flange and Gasket Thickness: 16 mm (0.62 in)
Air Volume Occupied by Driver: 8.5 dm3 (0.3 ft 3)
Net Weight: 9.3 kg (20.5 lb)
Shipping Weight: 10.9 kg (24.03 lb)
Shipping Box: 500x495x275 mm (19.69x19.49x10.83 in)
