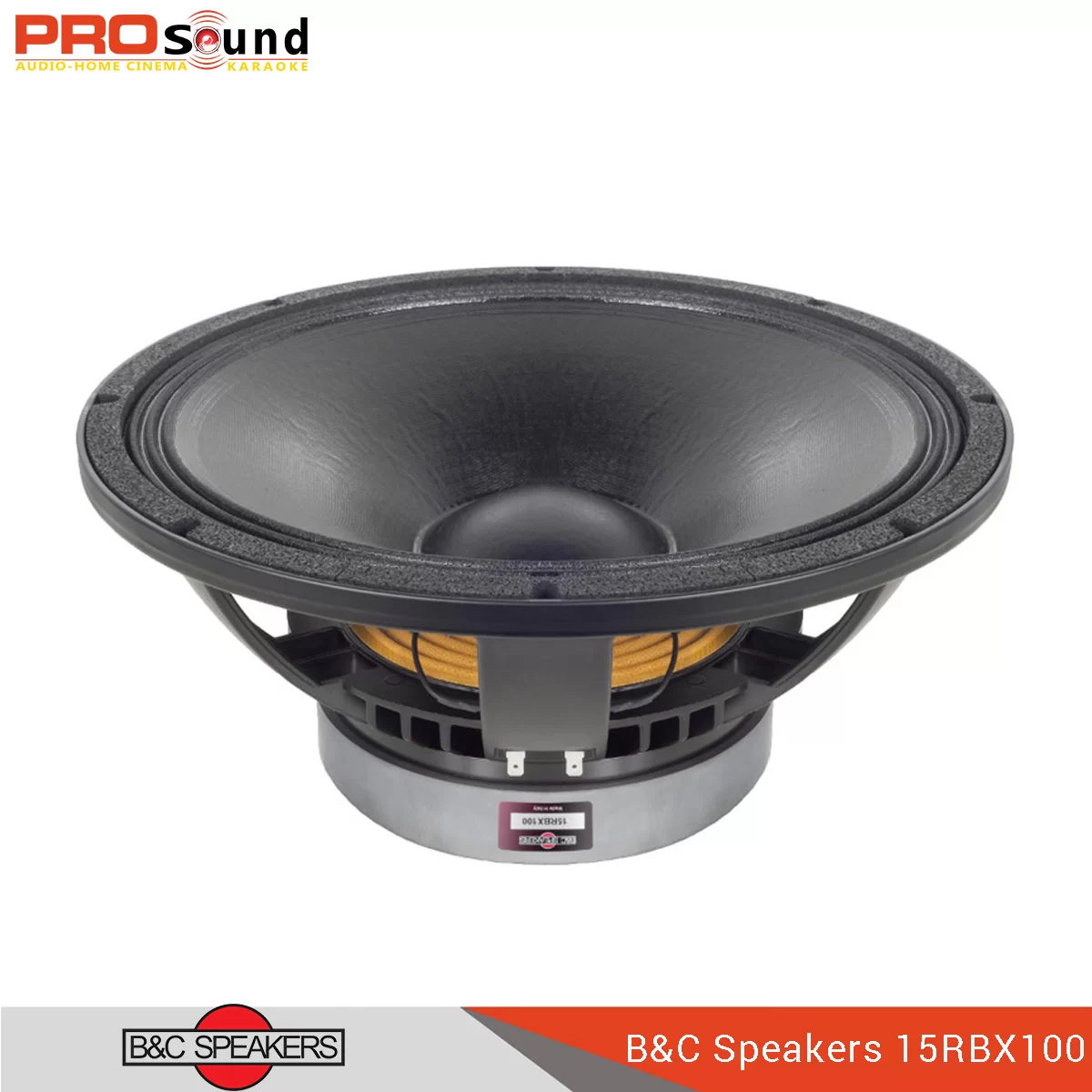

B&C Speaker 15RBX100

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features
2000 W continuous program power capacity
100 mm (4 in) copper voice coil
40 - 3000 Hz response
95 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance

Specifications
Nominal Diameter: 380 mm (15.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.4 Ω
Nominal Power Handling: 1000 W
Continuous Power Handling: 2000 W
Sensitivity: 95.0 dB
Frequency Range: 40 - 3000 Hz
Voice Coil Diameter: 100 mm (4.0 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 25.0 mm (1.0 in)
Magnetic Gap Depth: 11.0 mm (0.43 in)
Flux Density: 1.1 T

Design
Surround Shape: Triple Roll
Cone Shape: Curvilinear
Magnet Material: Ferrite
Spider: Double Silicone
Pole Design: T-Pole
Woofer Cone Treatment: TWP Waterproof Both Sides
Recommended Enclosure: 85.0 dm3 (3.0 ft3)
Recommended Tuning: 45 Hz

Parameters
Resonance Frequency: 44 Hz
Re: 5.3 Ω
Qes: 0.4
Qms: 5.65
Qts: 0.38
Vas: 100.0 dm3(3.53 ft3)
Sd: 908.0 cm2 (140.74 in2)
η₀: 2.0 %
Xmax: 9.0 mm
Xvar: 10.0 mm
Mms: 154.0 g
Bl: 24.0 Txm
Le: 1.2 mH
EBP: 110 Hz

Mounting and Shipping Info
Overall Diameter: 393 mm (15.47 in)
Bolt Circle Diameter: 374 mm (14.72 in)
Baffle Cutout Diameter: 354.0 mm (13.94 in)
Depth: 173 mm (6.81 in)
Flange and Gasket Thickness: 16 mm (0.63 in)
Air Volume Occupied by Driver: 5.0 dm3 (0.18 ft3)
Net Weight: 11.7 kg (25.79 lb)
