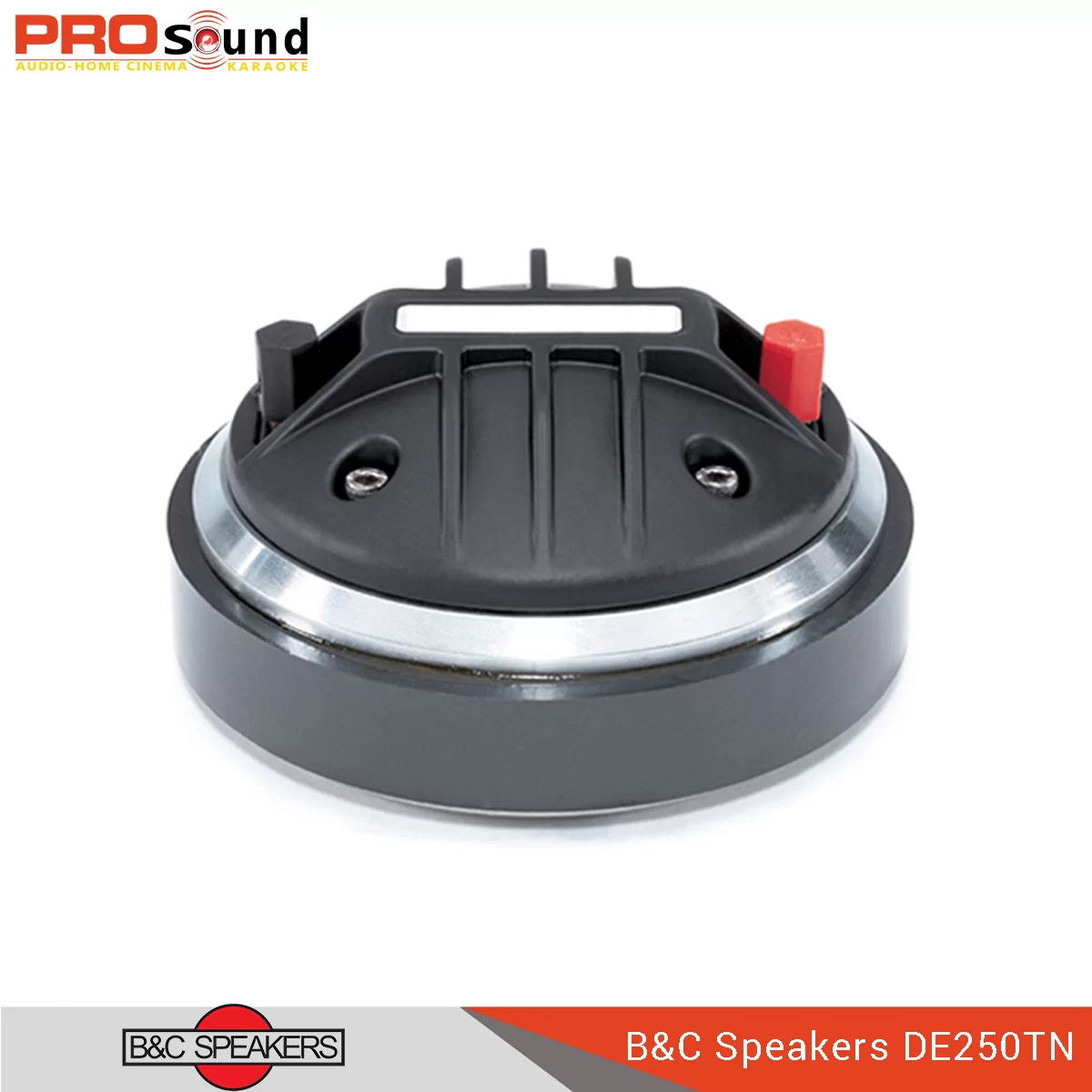

B&C Speaker DE250TN

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features
120 W continuous program power capacity
1" horn throat diameter
44 mm (1.7 in) aluminium voice coil
Titanium diaphragm
1000 - 18000 Hz response
106 dB sensitivity

Specifications
Throat Diameter: 25 mm (1.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.4 Ω
Nominal Power Handling: 60 W
Continuous Power Handling: 120 W
Sensitivity: 106.0 dB
Frequency Range: 1.0 - 18.0 kHz
Recommended Crossover: 1.5 kHz
Voice Coil Diameter: 44 mm (1.7 in)
Winding Material: Aluminium
Inductance: 0.11 mH
Diaphragm Material: Titanium
Flux Density: 1.85 T
Magnet Material: Ferrite

Mounting and Shipping Info
Two M6 holes 180° on 76 mm (3 in) diameter
Three M6 holes 120° on 57 mm (2.2 in) diameter
Overall Diameter: 120 mm (4.7 in)
Depth: 62 mm (2.4 in)
Net Weight: 2.1 kg (4.6 lb)
Shipping Units: 4
Shipping Weight: 8.85 kg (19.51 lb)
Shipping Box: 265x135x170 mm (10.43x5.31x6.69 in)
Specifications: 3x M6 Mounting Studs with bolts and washers included
