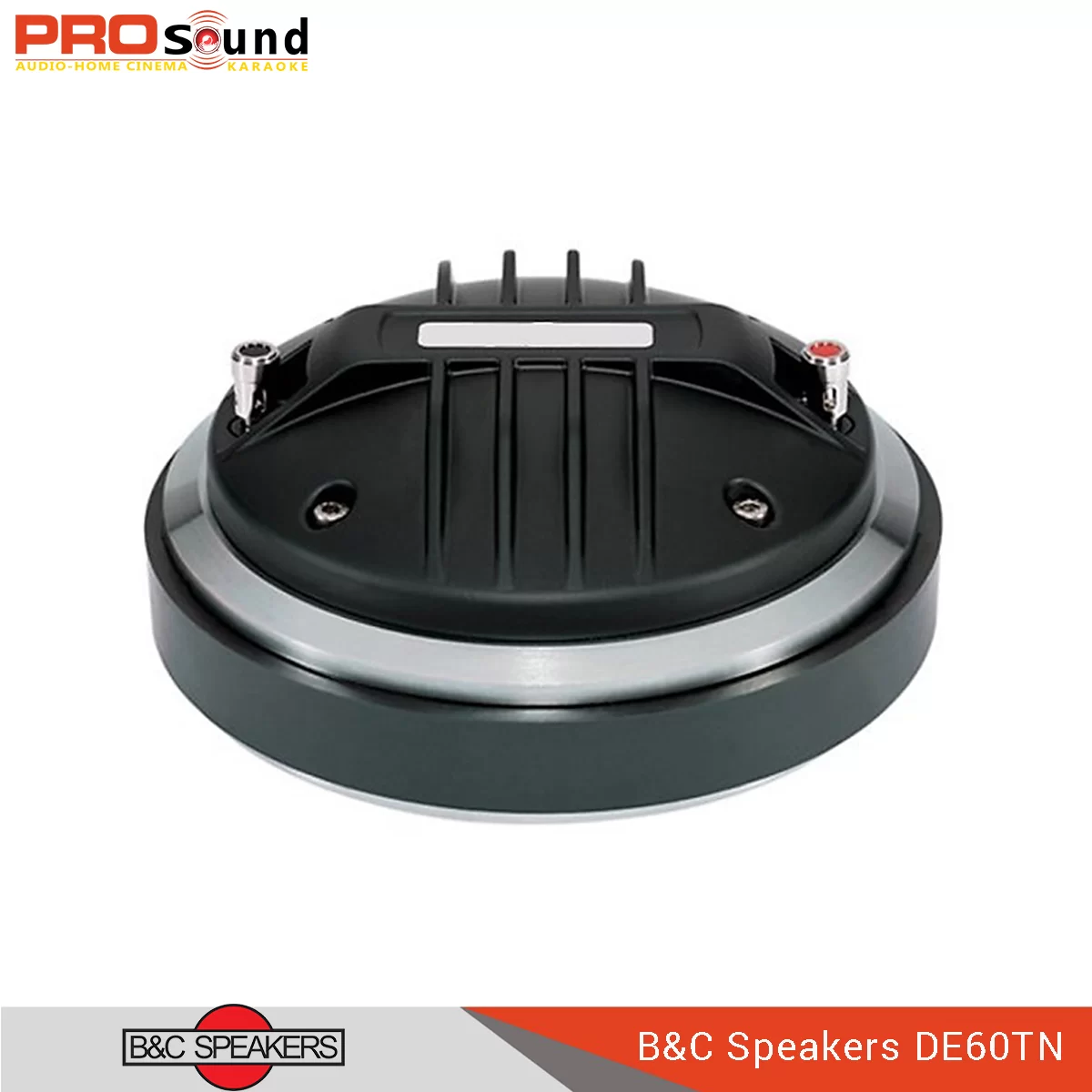

B&C Speaker DE60TN

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features
220 W continuous program power capacity
1.4" horn throat diameter
75 mm (3 in) aluminium voice coil
1000 - 18000 Hz response
107 dB sensitivity
Shorting copper cap for extended HF response

Specifications
Throat Diameter: 36 mm (1.4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.6 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 107.0 dB
Frequency Range: 1.0 - 18.0 kHz
Recommended Crossover: 1.2 kHz
Voice Coil Diameter: 75 mm (3.0 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Diaphragm Material: Titanium
Flux Density: 1.6 T
Magnet Material: Ferrite

Mounting and Shipping Info
Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 156 mm (6.1 in)
Depth: 66 mm (2.6 in)
Net Weight: 3.8 kg (8.38 lb)
Shipping Units: 2
Shipping Weight: 8.1 kg (17.86 lb)
Shipping Box: 210x210x190 mm (8.3x8.3x7.5 in)
