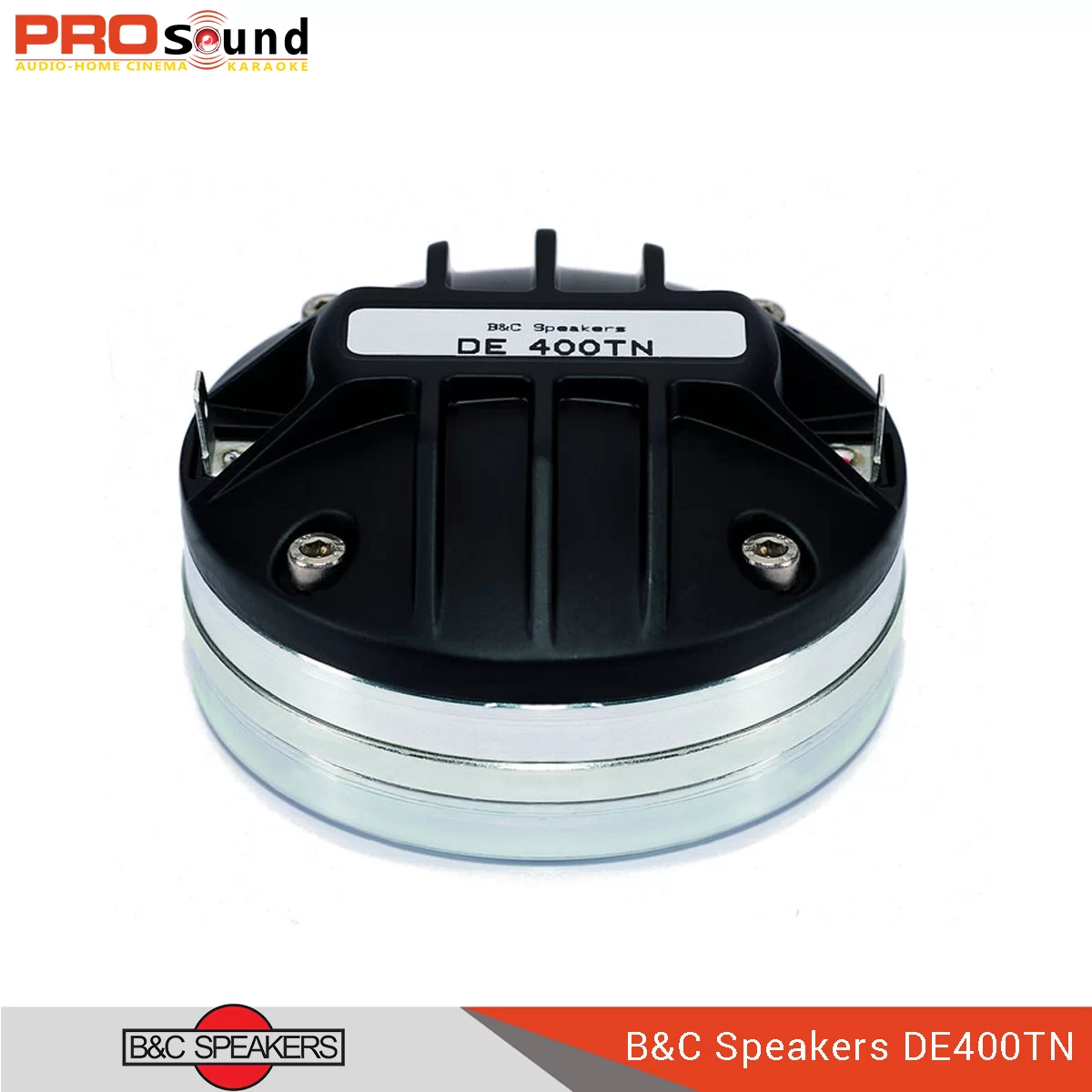

B&C Speaker DE400TN

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features

100 W continuous program power capacity
1' horn throat diameter
44 mm (1.7 in) aluminium voice coil
Titanium diaphragm
1200 - 18000 Hz response
106 dB sensitivity
Compact Neodymium magnet assembly
Shorting copper cap for extended HF response

Specifications
Throat Diameter: 25 mm (1.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.7 Ω
Nominal Power Handling: 50 W
Continuous Power Handling: 100 W
Sensitivity: 106.0 dB
Frequency Range: 1.2 - 18.0 kHz
Recommended Crossover: 1.5 kHz
Voice Coil Diameter: 44 mm (1.7 in)
Winding Material: Aluminium
Inductance: 0.11 mH
Diaphragm Material: Titanium
Flux Density: 1.8 T
Magnet Material: Neodymium Ring

Mounting and Shipping Info
Two M6 holes 180° on 76 mm (3 in) diameter
Overall Diameter: 85 mm (3.3 in)
Depth: 44 mm (1.7 in)
Net Weight: 0.8 kg (1.8 lb)
Shipping Units: 8
Shipping Weight: 7.05 kg (15.54 lb)
Shipping Box: 235x235x165 mm (9.25x9.25x6.50 in)
