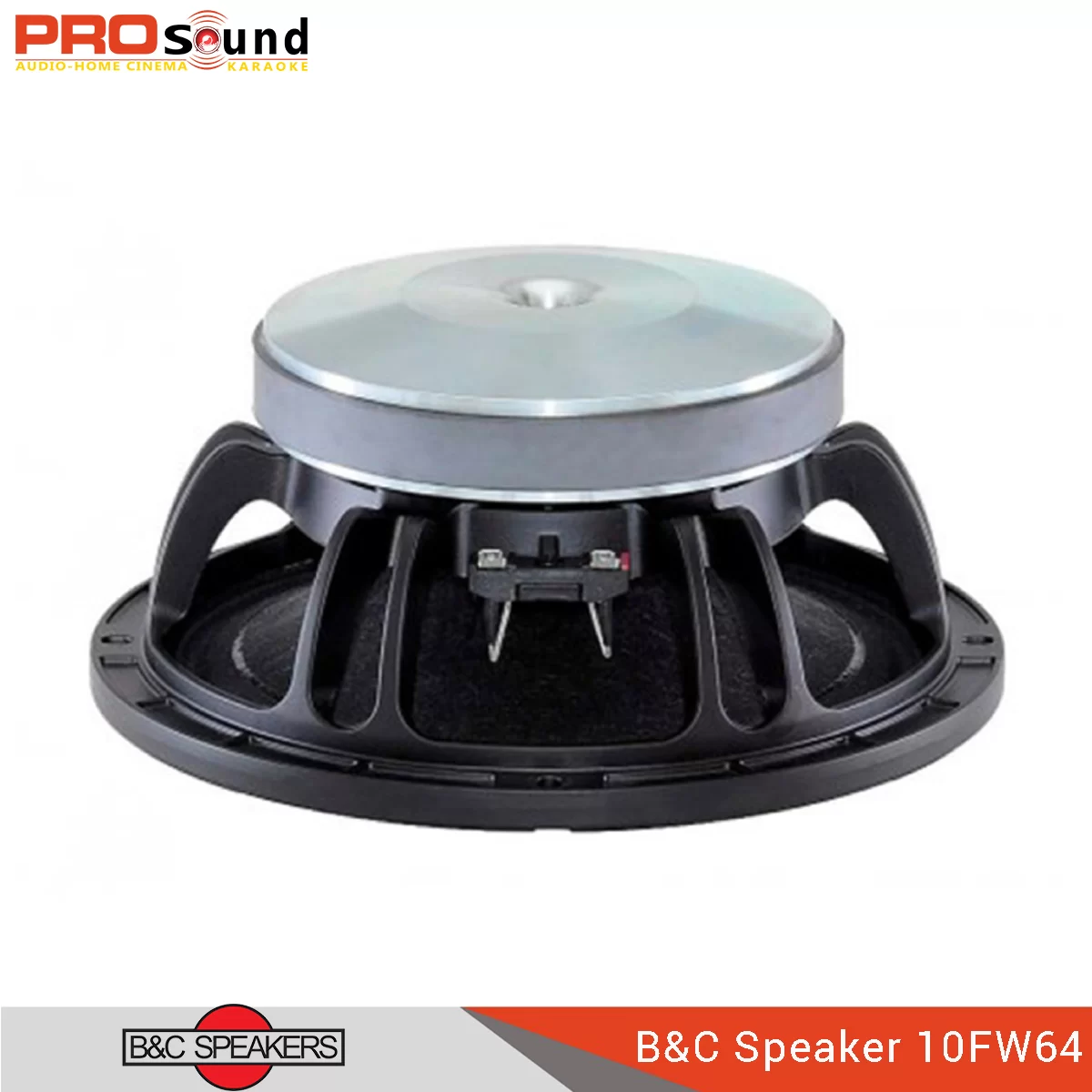

B&C Speakers 10FW64

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Specifications

Nominal Diameter: 250 mm (10.0 in)

Nominal Impedance: 8 Ω

Minimum Impedance: 6.4 Ω

Nominal Power Handling^1: 250 W

Continuous Power Handling^2: 500 W

Sensitivity^{3 :} 98.0 dB

Frequency Range: 65 - 3000 Hz

Voice Coil Diameter: 64 mm (2.5 in)

Winding Material: Aluminium

Former Material: Glass Fibre

Winding Depth: 14.0 mm (0.55 in)

Magnetic Gap Depth: 8.0 mm (0.31 in)

Flux Density: 1.25 T

Design

Surround Shape: Double Roll

Cone Shape: Exponential

Magnet Material: Ferrite

Spider: Single

Pole Design: T-Pole

Woofer Cone Treatment: WP Waterproof Front Side

Recommended Enclosure: 26.0 dm³ (0.92 ft³)

Recommended Tuning: 62 Hz

Parameters⁴

Resonance Frequency: 63 Hz

Re: 5.0 Ω

Qes: 0.25

Qms: 3.4

Qts: 0.23

Vas: 27.0 dm³ (0.95 ft³)

Sd: 320.0 cm² (50.0 in²)

η₀: 2.6 %

Xmax: 5.0 mm

Xvar: 5.5 mm

Mms: 34.0 g

Bl: 16.4 Txm

Le: 0.9 mH

EBP: 252 Hz

Mounting and Shipping Info

Overall Diameter: 261 mm (10.3 in)

Bolt Circle Diameter: 245 mm (9.6 in)

Baffle Cutout Diameter: 230.0 mm (8.8 in)

Depth: 116 mm (4.6 in)

Flange and Gasket Thickness: 13 mm (0.5 in)

Air Volume Occupied by Driver: 2.5 dm³ (0.09 ft³)

Net Weight: 5.9 kg (13.0 lb)

Shipping Units: 1

Shipping Weight: 6.5 kg (14.3 lb)

Shipping Box: 295x314x175 mm (11.61x12.36x6.89 in)
