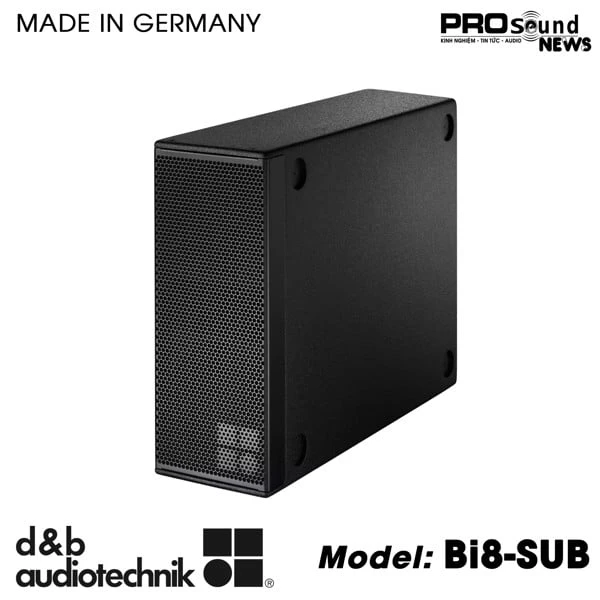

Subwoofer d&b Audiotechnik Bi8

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Product description

The Bi8-SUB is an ultra compact subwoofer that pairs with the established d&b xC, xS and E-Series loudspeakers. The Bi8-SUB is the installation version of the B8 subwoofer and differs only in cabinet construction and mounting hardware. The Bi8-SUB features two 6.5” drivers housed within a bass-reflex cabinet design. Its low height (170 mm) makes it an ideal solution for small scale applications that require an extended low frequency response while still achieving high Sound Pressure Levels. The frequency response extends from 43 Hz to 170 Hz. When operating in 100 Hz mode, the upper operating frequency of the subwoofer is reduced from 170 Hz to 125 Hz.

The Bi8-SUB can be flown either horizontally or vertically. Two M8 threaded inserts are incorporated, one on each side panel to allow the attachment of a dedicated flying bracket.

The enclosure is constructed from marine plywood with an impact resistant black paint finish. The front of the cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The rear panel incorporates two NL4 connectors and a two pole screw terminal block. The Bi8-SUB is also available in Special Colour (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating and enables operation of loudspeakers in changing ambient conditions.

System data

Frequency response (-5 dB standard): 43 Hz - 170 Hz

Frequency response (-5 dB 100 Hz mode): 43 Hz - 125 Hz

Max. sound pressure¹
with 10D: 120 dB
with D20/30D: 122 dB
with D40/D80/40D: 122 dB

Cabinets per amplifier channel: 2

Loudspeaker data

Configuration: Ultra compact subwoofer

Nominal impedance: 8 Ω

Power handling capacity (RMS/peak 10 ms): 200/800 W

Components: 2 x 6.5" driver with ferrite magnet

Connections: 2 x NL4 M
1 x screw terminal (ST - up to 4 mm2/AWG 11)
WR option: Faston type connector 2 x 6.3 mm, female

Pin assignment

NL4 M: 2+/2–
WR option: brown +/blue –

Dimensions / weight

Dimensions (H x W x D): 170 x 436 x 580 mm/6.7 x 17.2 x 22.8"

Weight: 17 kg/37.5 lb
