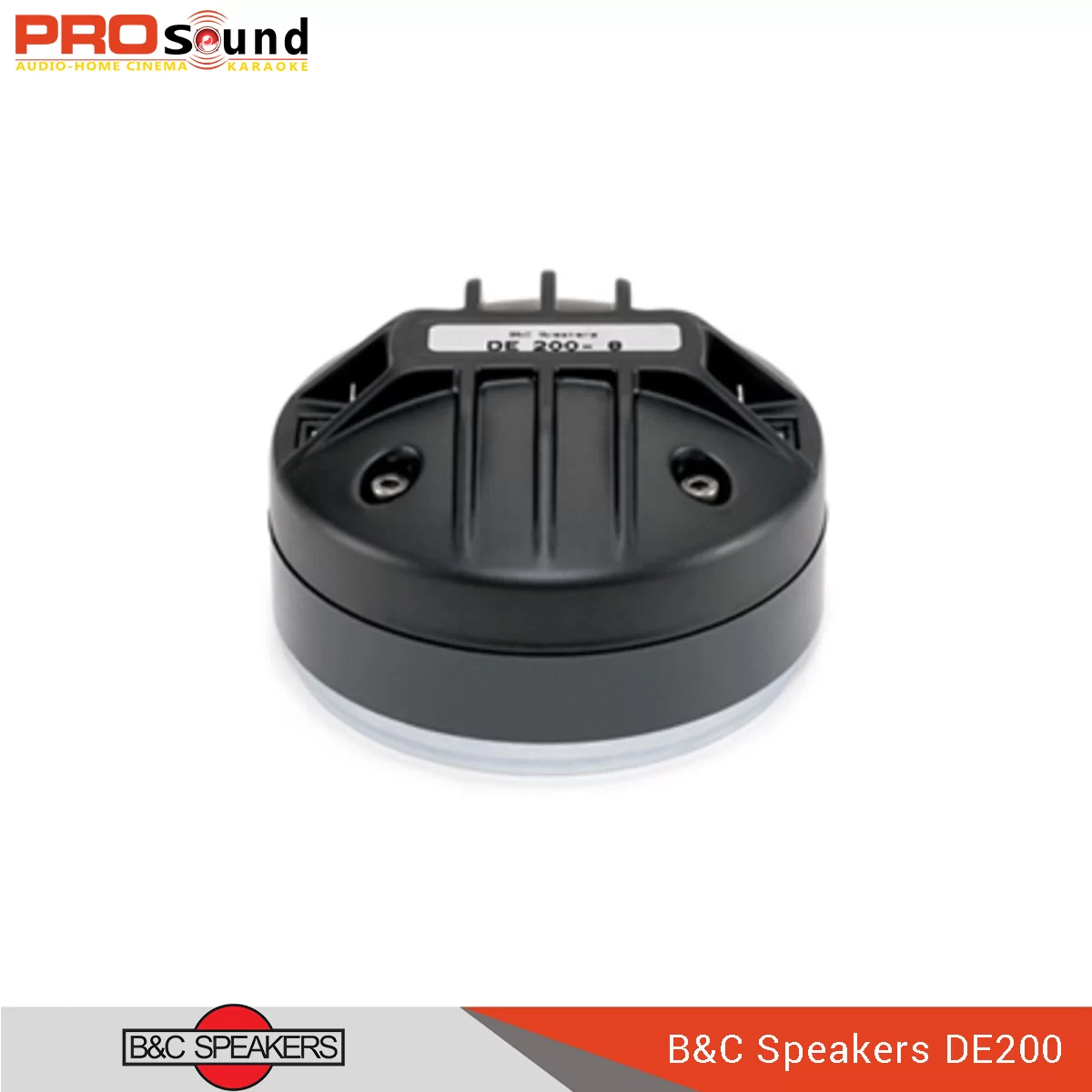

B&C Speaker DE200

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features
100 W continuous program power capacity
1' horn throat diameter
44 mm (1.7 in) aluminium voice coil
Titanium diaphragm
1000 - 18000 Hz response
106 dB sensitivity

Specifications
Throat Diameter: 25 mm (1.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.5 Ω
Nominal Power Handling: 50 W
Continuous Power Handling: 100 W
Sensitivity: 106.0 dB
Frequency Range: 1.0 - 18.0 kHz
Recommended Crossover: 1.6 kHz
Voice Coil Diameter: 44 mm (1.7 in)
Winding Material: Aluminium
Inductance: 0.11 mH
Diaphragm Material: Titanium
Flux Density: 1.5 T
Magnet Material: Ferrite

Mounting and Shipping Info
Two M6 holes 180° on 76 mm (3 in) diameter
Three M6 holes 120° on 57 mm (2.2 in) diameter
Overall Diameter: 102 mm (4.0 in)
Depth: 61 mm (2.4 in)
Net Weight: 1.7 kg (3.7 lb)
Shipping Units: 8
Shipping Weight: 14.25 kg (31.42 lb)
Shipping Box: 235x235x165 mm (9.25x9.25x6.50 in)
