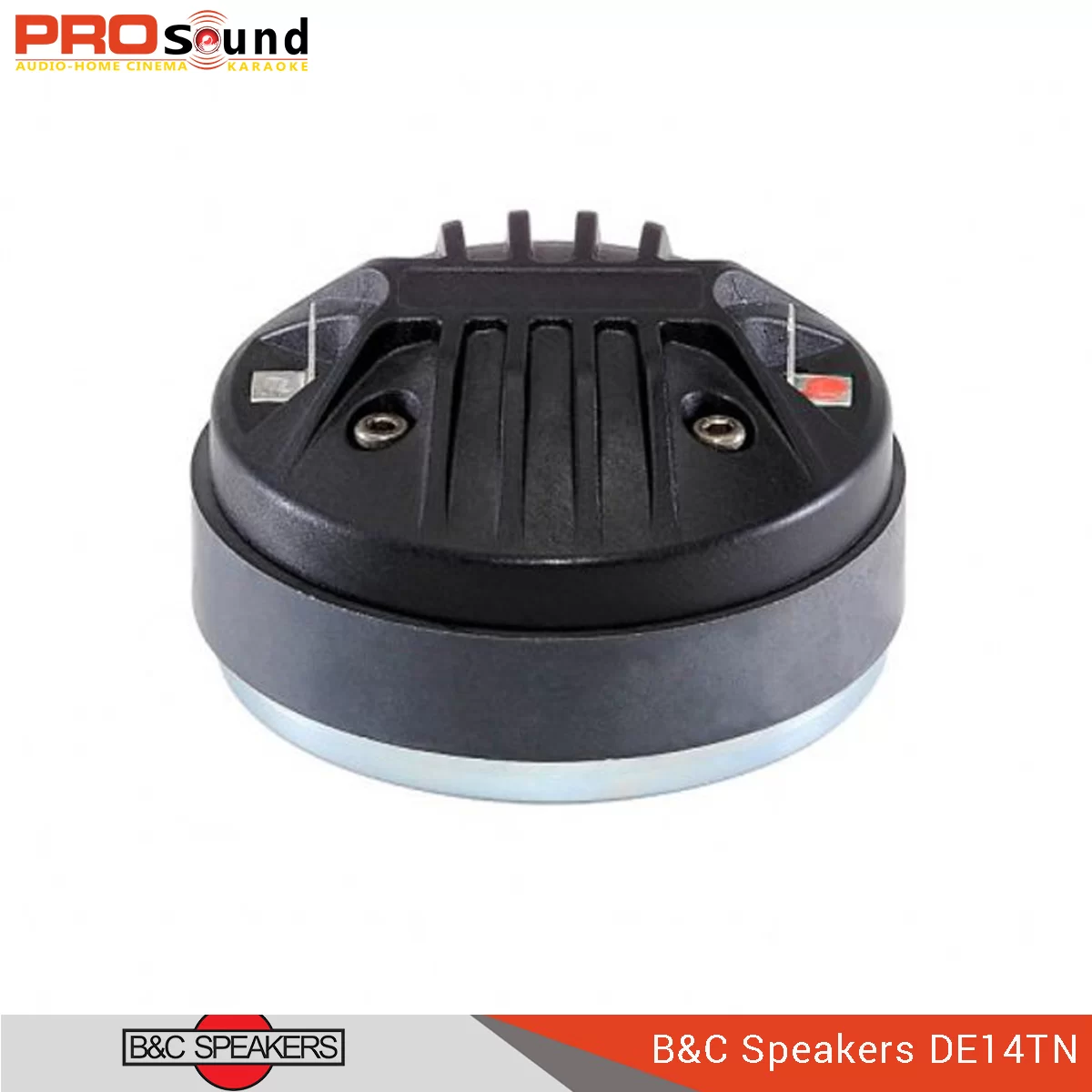

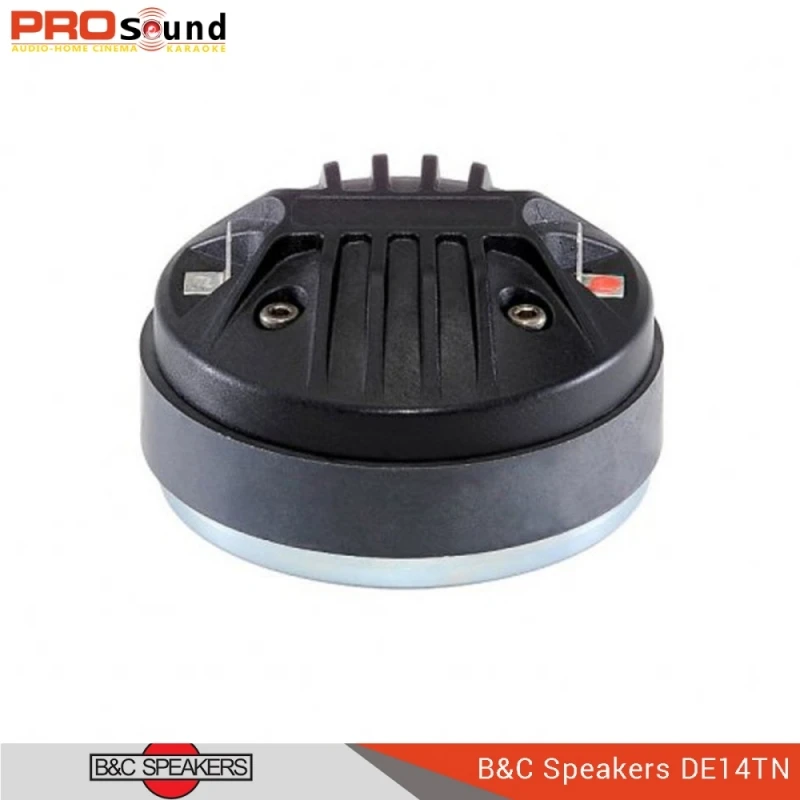

B&C Speaker DE14TN

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features
60 W continuous program power capacity
1" horn throat diameter
36 mm (1.4 in) aluminum voice coil
Titanium diaphragm
1500 - 18000 Hz response
105 dB sensitivity

Specifications
Throat Diameter: 25 mm (1.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.4 Ω
Nominal Power Handling: 30 W
Continuous Power Handling: 60 W
Sensitivity: 105.0 dB
Frequency Range: 1.5 - 18.0 kHz
Recommended Crossover: 2.2 kHz
Voice Coil Diameter: 36 mm (1.4 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Diaphragm Material: Titanium
Flux Density: 1.45 T
Magnet Material: Ferrite

Mounting and Shipping Info
Two M5 holes 180° on 76 mm (3 in) diameter
Three M6 holes 120° on 57mm (2.2 in) diameter
Overall Diameter: 90 mm (3.5 in)
Depth: 49 mm (2.0 in)
Net Weight: 1.1 kg (2.4 lb)
Shipping Units: 8
Shipping Weight: 9.45 kg (20.83 lb)
Shipping Box: 235x235x165 mm (9.25x9.25x6.50 in)
